Braided Brake Pipe Kit For Billet Aluminium Pedal Box & Wilwood Brakes

Indy Cup Braided Brake Pipe kit for the billet aluminium pedal box.

Complete braided brake lines for the Indy Cup car

Contents of the kit include front to rear braided lines, front sectional braided lines and both front and rear tails to the calipers.

Qty x 1 Length 2460 mm, 3/8 unf bango with bolt one end, the other end male m10x1

Qty x 2 Length 960 mm, m10x1 male one end,  to the other end m10 x 1

Qty x2 Length 1020mm m10x1 male one end,  to the other end m10 x 1 female

Qty x 1 Length 1500mm 3/8 unf bango with bolt one end, the other end male m10x1

Qty x 2  ( 3 way brake tee M10 x 1)

Please Note: These are not road legal and are only for use the race or track only cars

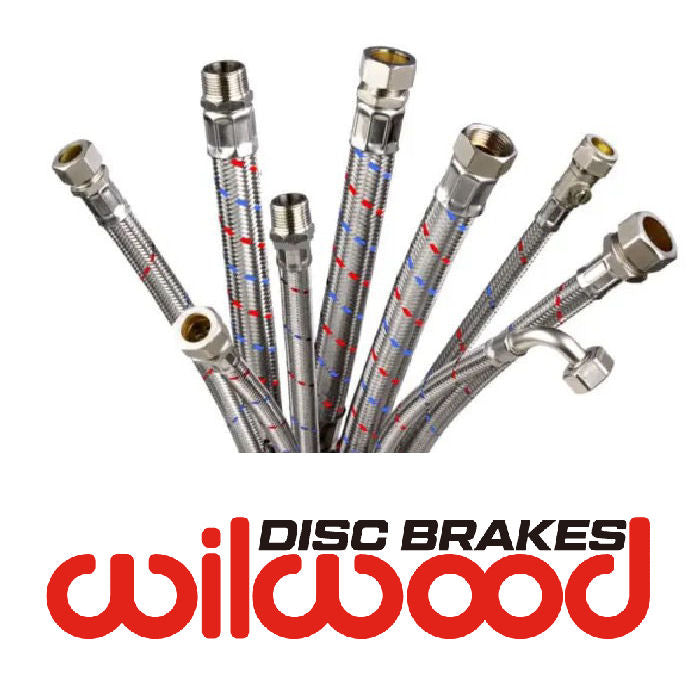

Picture is for illustration only
