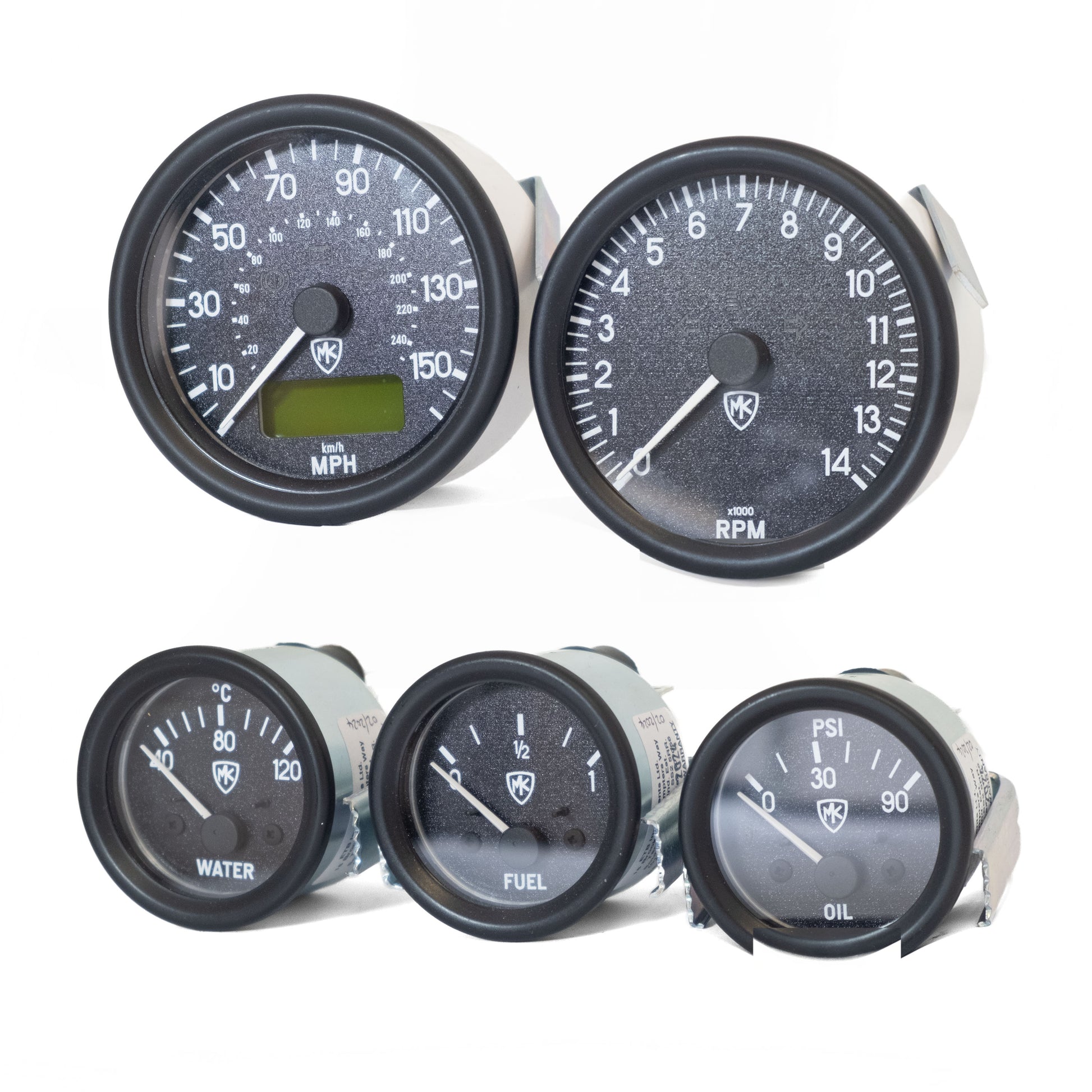

MK Sportscars Black Analogue 5 Dial Set + Warning Lights

MK Sportscars Branded five gauge set of Analogue Dials and sensors with a Black dial, Black IVA bezel surround and white pointers.

The set consists of the following:-

1. 80mm Electronic Programmable Speedometer -  *Please State 160 MPH or 240 Km/h above
2. 80mm Electronic Programmable Tachometer *Please select the rpm
3. 52mm Fuel Level Gauge 260-20 Ohm
4. 52mm Water Temperature Gauge 40-120°C
5. 52mm Oil Pressure Gauge 0-90psi
6. Water Temperature Sensor 1/8"NPTF
7. Oil Pressure Sensor 1/8"NPTF (includes warning light switch)
8. Fuel Level Sensor (6-hole, top-mount)
9. Speed Sensor M8x1mm (30mm barrel length + 2 metres of cable)

The speedometer has a 6-digit plus 1/10th mile odometer, two resettable trip counters, 0-xxx timer (e.g. 0-60), 1/4 mile/km timer and peak speed memory. The tachometer has a programmable output for an external shift light.

Tacho and Speedo come with warning lights for the indicators, hand brake, battery, oil, high beam.

We advise the following rpm combinations depending on engine:

Ford Duratec - 8k
Mazda MX-5 - 8k
Honda K20 - 10k
Honda S2000 - 10k
Suzuki Hayabusa - 12k
Yamaha R1 - 14k
Honda CBR1000RR - 14k

Please note product made to order 14-21 working days
