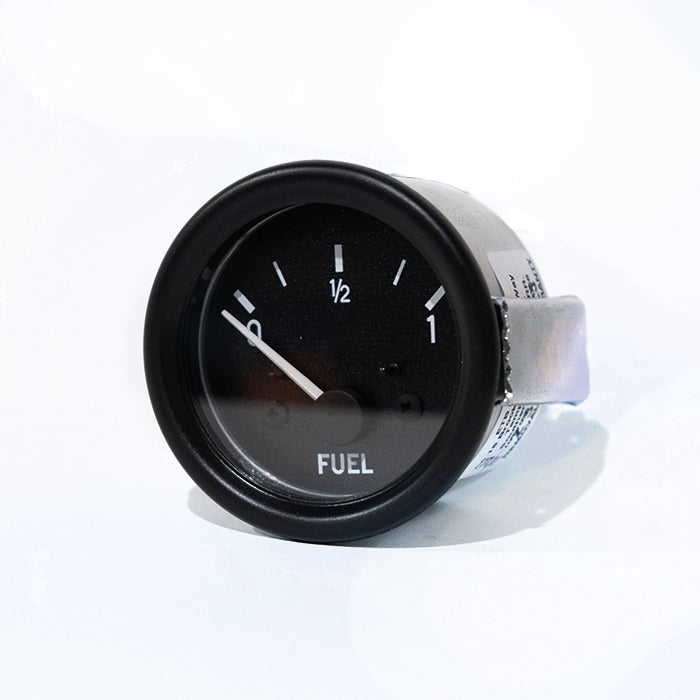

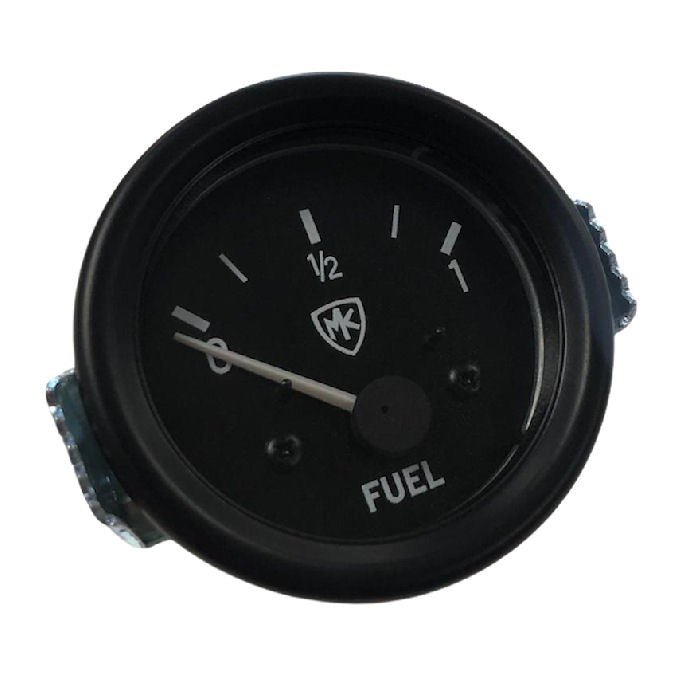

ETB Instruments Fuel Gauge 52mm 260-20 Ohms

This is a highly damped fuel level gauge matched to our standard 6-hole top-mount float-arm fuel level sensor.  This fuel level sensor is required to provide the gauge with the correct input resistance, which is 260 Ohms at empty to 20 Ohms full.

The gauge is supplied a 'U'-shaped fixing bracket and thumb nuts along with a 12v /2w illumination bulb. Night illumination is classic white.

The gauge size of 52mm denotes the outer diameter of the main body of the instrument and hence a 53mm to 54mm diameter hole is required in the dashboard.

Please Note : This product is made to order so lead times are between 14 and 21 working days
