Kit Starts at £14,750 + VAT

Available in both RHD and LHD configuration, the RX-5 250 is based on the running gear of the Mazda MX-5 / Miata NB from 1998 - 2000.  In terms of exterior styling, both versions of the RX-5 share a similar design language, with sleek lines and aggressive styling. However, the RX-5 250 comes with that all important 100 bhp beneath the loud pedal.

Price will vary with inclusion of optional extras.

UK Road Tax (6m) - £178.75

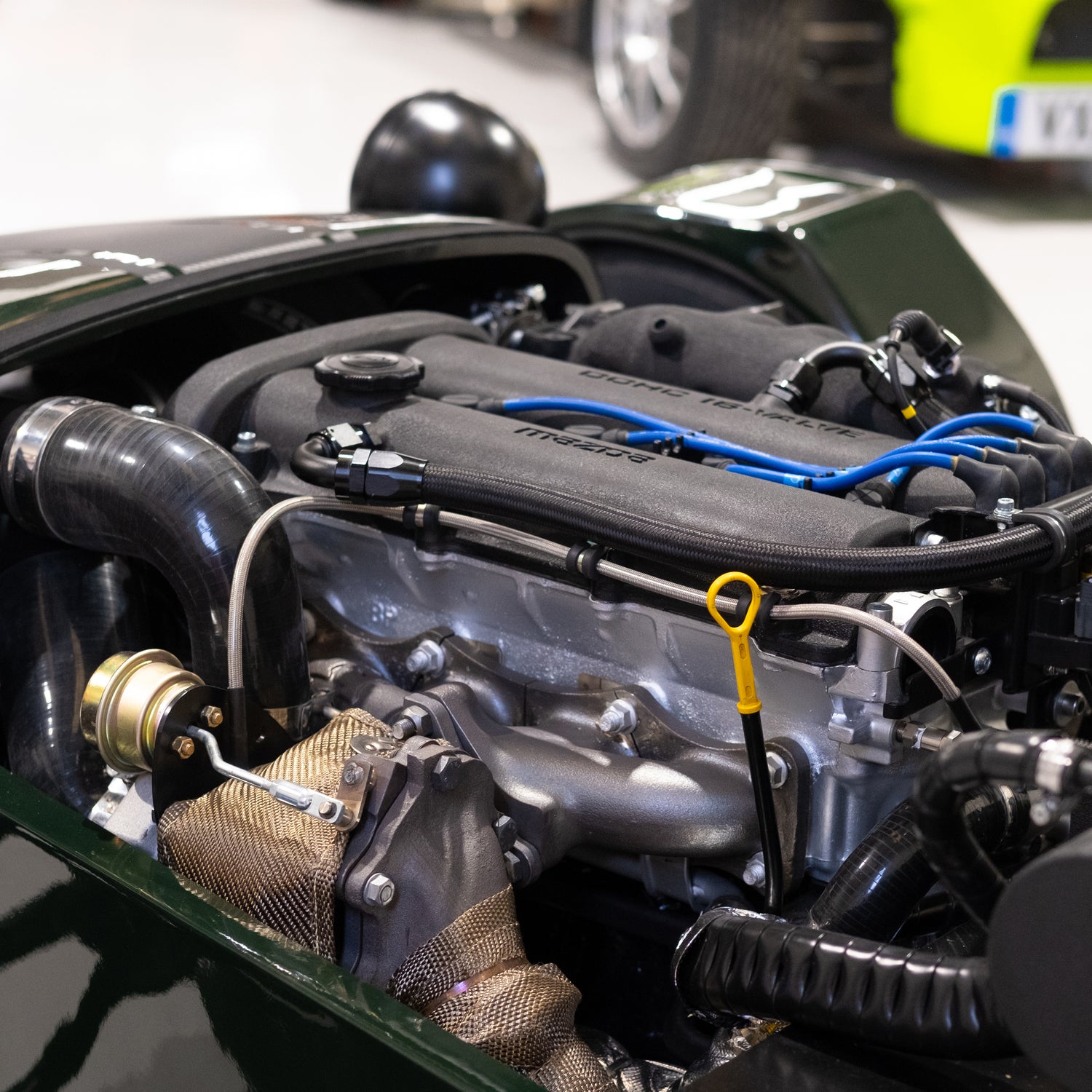

With the underpinnings of the standard Indy RX-5 140 comes the forced induction variant aptly named the RX-5 250.  While both versions share many similarities, there are some key differences between the two that set them apart.  Using the reliable TD04 turbo from a Subaru Impreza, the RX-5 250 is a bolt-on upgrade from the base RX-5 model.  This is a proven upgrade path for your standard RX-5 140, which can be done either at build time when you're configuring your kit or in a year or so once you've gotten used to driving the RX-5 140. Our mission was to enhance the power in the Mazda NB 1.8 engine in the most efficient way possible to keep the cost of this model low, while not compromising the excellent road holding and characteristics of the entry model in the RX-5 range.

Send an enquiry

What's Included In The Kit?

Universal Aluminium Radiator And Intercooler Combination

Universal Plastic and Aluminium Radiator

Mazda MX-5 MK 2 1.8 TD04 Turbo Exhaust Manifold

Subaru Mitsubishi Aftermarket TD04-13T Turbo

Mazda MX-5 Turbo Cast Exhaust Manifold Elbow + Clamp

MK Indy RX-5 Turbo Exhaust Link Pipe

MK Indy RX-5 Decat Exhaust Link Pipe 2.5"

ME221 Plug-In ECU for Mazda MX-5 1999-2000 1.6/1.8

MK Indy RX-5 Turbo In Tank Fuel Pump Kit

Universal Turbo Oil Return Sump Fitting 16mm

Subaru Mitsubishi TD04-13T Turbo Oil Drain Return Pipe Kit

Turbo Oil Return 15mm Rubber Pipe (0.5m)

Mazda MX-5 Turbo Braided Oil Line Kit

Subaru Mitsubishi TD04 / TD05 Turbo Gasket Set

Subaru Mitsubishi TD04 / TD05 Turbo Stud Kit

Mazda MX-5 Bosch EV14 640cc Injectors (Set of 4)

Wilwood Powerlite Front Brake Kit With Fitting Kit For Mazda MX-5 NB mk2 (Special Offer)

Wilwood Powerlite Mintex 1144 Brake Pads

Wilwood Powerlite 1/8 NPT 45 Degree Brake Hose Adapter (Pair)

Goodrich Braided Brake Lines with M10 x 1 to 1/8npt For Wilwood Calipers (Pair)

MK Indy RX-5 Braided Brake Lines For Standard Mazda MX-5 Brake Calipers Front (Pair)

Universal Slimline 12" Electric Cooling Fan - 120W

Universal Slimline 10" Electric Cooling Fan - 80W

Mazda MX-5 1.8 mk1 mk2 mk2.5 NA NB Performance Fast Road / Race Clutch 1998-2005

Mazda MX-5 Diff Brace Welding Service (Per Side)

Valvoline Racing VR1 20W 50 Mineral Oil 5 Litres

Mazda MX-5 1.8 mk2 1998-2000 Oil Filter

Mazda MX-5 1.8 NB Turbo Spark Plug (Set of 4)

OMEX 2 Pin Air Temperature Sensor

Turbo Boost Controller Valve / Air Temperature Sensor Plug

Silicone Reducing Hose 45 Degree Elbow 63 - 51mm Diameter (Black)

Stainless Steel Band Worm Drive Hose Clamp Jubilee Clip 50 - 70 mm (Each)

Stainless Steel Band Worm Drive Hose Clamp Jubilee Clip 60 - 80 mm (Each)

Stainless Steel Band Worm Drive Hose Clamp Jubilee Clip 70 - 90 mm (Each)

Mazda MX-5 TD04 Turbo Boost Pressure Controller

Silicone Reducing Hose 70 - 63mm Diameter (Black)

Silicone Reducing Hose 63 - 51mm Diameter (Black)

Universal Silicone Hose 51mm Diameter Hose 90 deg Elbow (Black)

Universal Silicone Hose 51mm Diameter 76mm Straight Coupler Hose (Black)

Universal 63mm Aluminium 90 Deg Pipe

Universal Aluminium Pipe 51mm (1 metre)

---------------------------

Overview
Square Tube RX-5 Chassis
X Brace Roll Over Bar

Engine & Gearbox
Mazda MX-5 1.8 mk2 NB (1998-2000) 140 bhp *
5 or 6 Speed Gearbox *
Limited Slip Differential *
Trackday Stainless Exhaust Silencer
Mazda MX-5 ECU & Immobiliser

Suspension, Brakes & Wheels
15" Wheels *
Independant Rear Suspension
Protech Single Adjustable Shocks
Mazda Front Brake Calipers *
Mazda Rear Brake Calipers *
2.4 Racing Quick Rack
Adjustable Wishbone Suspension

Exterior Specification
Black or White GRP Bodywork **
Black CSR GRP Front Wheel Arches / Fenders
50mm X Brace Roll Cver Bar (Bolt In)
Vinyl Boot Cover

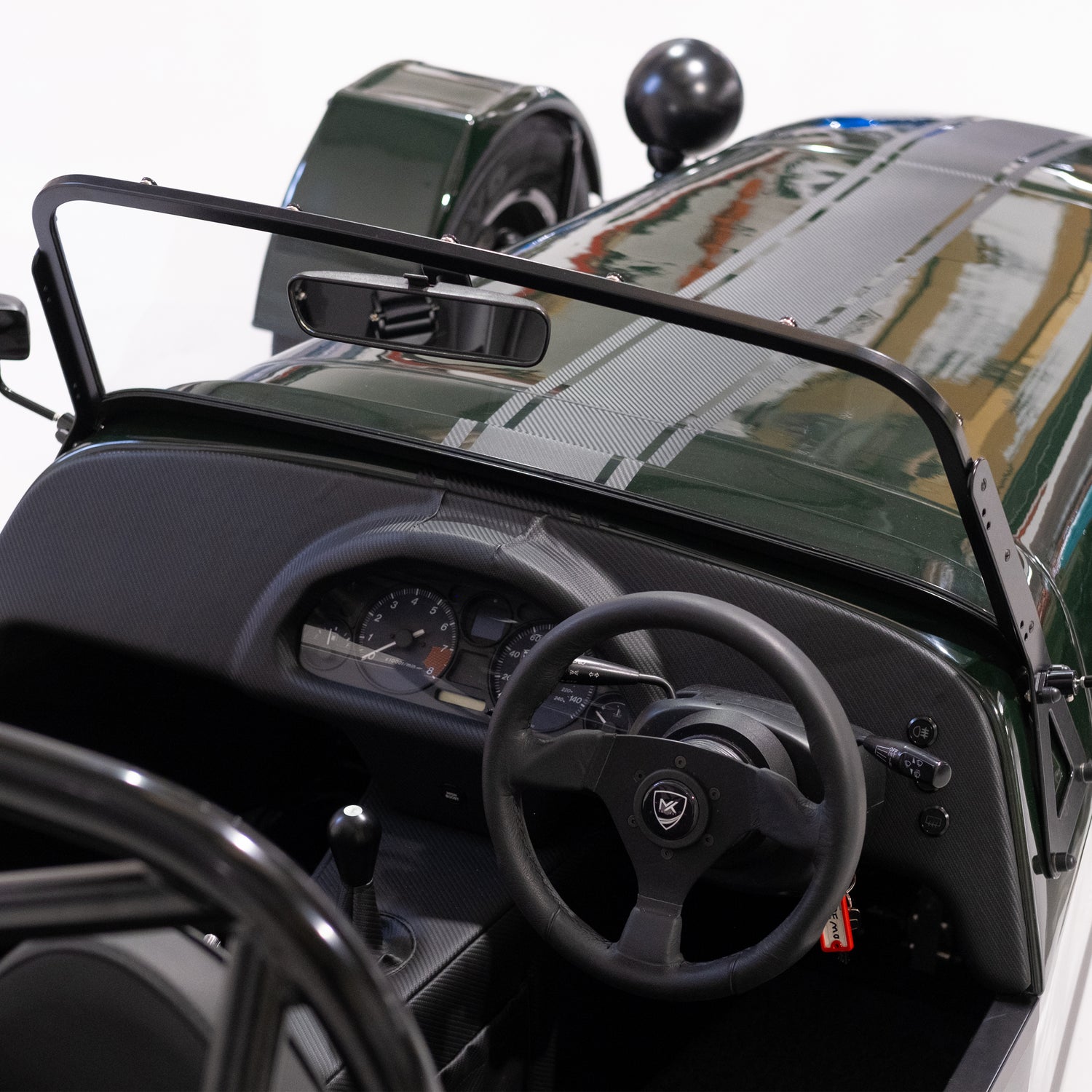

Interior Specification
Mazda Dashboard Dials *
Black GRP Dashboard
Alloy Interior Panels
Black GRP High Sided Seats
Black Alloy Floor Pan
MK Branded 4 Point Seat Belt Harnesses
Billet Aluminium Brake Bias Pedal Box
Padded Centre Tunnel Top

What's Needed From Your Donor Car?

Mazda MX-5 mk 2 (1998 - 2000),
V5 Vehicle Registration Document
Engine & Auxiliaries, 1800 cc
Exhaust Manifold,
Gearbox,
Gear Lever,
Propshaft,
Differential,
Driveshafts,
Rear Uprights,
Rear Hubs,
Rear Calipers & Disks,
Handbrake Cable,
Handbrake Lever,
Upper & Lower Steering Column complete with all turn signal/wiper and column switch gear
Front Uprights,
Front Hubs,
Front Calipers & Disks,
Wheels & Tyres,
Wiring Loom complete with fuse box and immobiliser,
Instrument Cluster,
Bottom Ball joints & Steering Arms,
Steering Wheel,
Horn,
Air Flow Meter and Air intake pipe work,
Hazard Light Switch,
Cigarette Lighter,
Fuel Pump,
Fuel Filter,
Fuel Filter Bracket,
Coolant Pipework,
Fog Light Switch and Dashboard Dimmer Switch

Want Us To Build Your Car?

While the RX-5 model is designed to be built from a kit at home due to the amount of time involved in refurbishing the donor components, we can offer the factory build on this vehicle through the "owner donor" program. With the owner donor, you supply all the donor parts for the vehicle all fully refurbished, and we will assemble the vehicle for you. So if you're looking for an RX-5 but don't want to assemble the vehicle, look no further, we have you covered.



* Parts Taken from the donor vehicle

* Different Colours Available at extra cost
